STEEL FURRING CHANNEL
JX Building Products Ltd. offers a variety of sizes in metal furring channel. Our products are widely praised for their high quality, establishing a strong reputation in the industry. We have formed long-term cooperative relationships with numerous construction enterprises and teams.

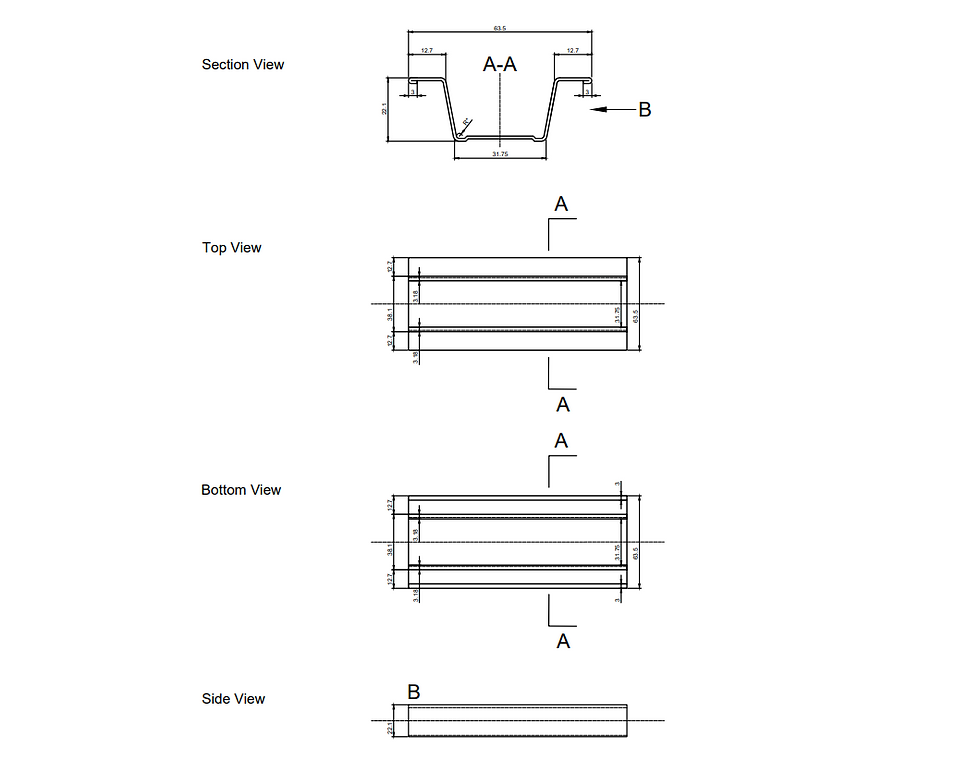

CAD DESIGN
CSSBI 61:21
Size Table
STEEL FURRING CHANNEL
The furring channel, with its distinctive hat shape, is a corrosion-resistant element utilized in construction to extend or 'furr out' masonry walls and ceiling structures. In the context of wall installations, this channel is affixed vertically to the wall using concrete nails or mechanically-driven fasteners. Subsequently, gypsum panels are secured onto these furring channels with screws.
Width (inch)
Height (inch)
Thickness (mils)
Length (feet)
STUDS & TRACKS SIZE INFORMATION
Web Depth:
Measured in 1/100 inches. (Example 362 -> 362 * 1/100’’ = 3.62’’ = 3-5/8’’
Flange Width:
Measured in 1/100 inches. (Example 125 -> 125 * 1/100’’ = 1.25’’ = 1-1/4’’
362 T 125 - 18
Style:
S -> Stud or Joist Framing Which Has Lips (C-Stud)
T -> Track/ Slotted Deflection
F -> Furring Channel
C -> Carrying/Bridging Channel
A -> Angle Framing Trim
Material Thickness:
Measured in mils.
18 mils = 25 Gauge
33 mils = 20 Gauge
